Intellia’s In Vivo Approach

Intellia’s CRISPR-based investigational therapies were designed to precisely edit DNA and halt production of proteins associated with a disease via a one-time infusion.1,2

Intellia’s investigational CRISPR technology is packaged within lipid nanoparticles (LNPs), a nonviral delivery system that transports the CRISPR technology to the desired organ (ie, liver).1,2

How Intellia’s Investigational CRISPR Technology Is Designed to Work1-6

1

In vivo administration enables a one-time infusion for CRISPR-based gene editing to occur1,2

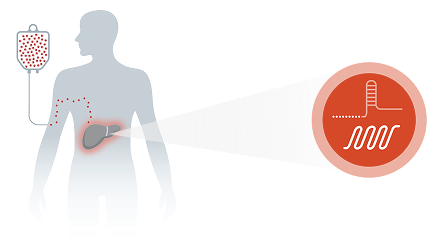

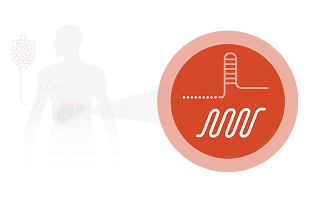

An illustration of CRISPR-based gene editing being infused into the liver
2

LNP is a nonviral delivery system that distributes preferentially to the liver, where the majority of the target protein is synthesized1-5

An illustration of CRISPR-based gene editing being infused into the liver
3

A guide RNA directs CRISPR to enable a precise edit in the target gene to potentially inactivate it1,2

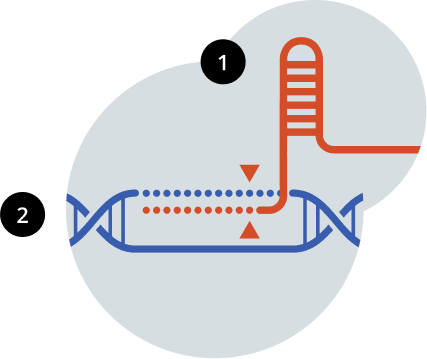

An illustration of Cas9 and a guide RNA
4

The edit is expected to be permanent even after the CRISPR-based therapeutic is cleared from the system1,2,6

An illustration of a DNA stand after CRISPR therapy
An illustration of CRISPR-based gene editing being infused into the liver
An illustration of Cas9 and a guide RNA
An illustration of a DNA stand after CRISPR therapy

Cas9, CRISPR-associated protein 9; CRISPR, clustered regularly interspaced short palindromic repeats; LNP, lipid nanoparticle; RNA, ribonucleic acid.

Two Key CRISPR Components1,7

Intellia’s CRISPR has two components, a guide RNA and Cas9 enzyme, that are designed to target a specific location on the gene containing the disease-associated protein blueprint so that a precise edit can be made.1,7

An illustration of Cas9 and a guide RNA
1

What is guide RNA?

Guide RNA, also called gRNA, acts as a “molecular GPS” for the Cas9 enzyme, helping to locate the precise spot in the DNA that needs editing.1,7

2

What is Cas9?

Cas9 is the enzyme responsible for editing the gene.1,7

Learn more about Intellia’s Proprietary Lipid Nanoparticle Delivery System

Learn more about the components of CRISPR that aid in its precision by watching the following video:

Understanding CRISPR/Cas9 Components video
View Transcript

CRISPR/Cas9 Process

A guide RNA, which acts as a “molecular GPS,” can be designed to target a specific gene of interest. Furthermore, guide RNAs can be carefully engineered to precisely target a very specific location within a gene, with the aim to minimize off-target edits.1,2,7

Responsible Innovation
The gRNA has a 20-nucleotide sequence targeting the gene of interest and multiple checkpoints before gene editing ensues1,8
An illustration of Cas9 nuclease, protospacer adjacent motif (PAM), and gRNA
1
An illustration of Cas9 nuclease, protospacer adjacent motif (PAM), and gRNA

Cas9 first identifies the protospacer adjacent motif (PAM) in the DNA, which allows initial binding.8,9

An illustration of Cas9 nuclease, protospacer adjacent motif (PAM), and gRNA
2
An illustration of Cas9 nuclease, protospacer adjacent motif (PAM), and gRNA
Cas9 will only assume an active conformation when the gRNA is complementary to the target DNA strand.8
An illustration of a DNA strand with an indel in it
3
An illustration of a DNA strand with an indel in it

Once activated, the Cas9 nuclease will create a precise double-strand break (DSB) in the target gene, potentially resulting in small insertions and/or deletions (indels) and inactivating the gene.1,8,9

An illustration of a disease-associated protein stopping production after CRISPR therapy
4
An illustration of a disease-associated protein stopping production after CRISPR therapy

This is intended to stop production of the protein associated with a disease.1

Cas9, CRISPR-associated protein 9; DNA, deoxyribonucleic acid; gRNA, guide RNA; PAM, protospacer adjacent motif.

Natural Repair Process

DNA is naturally prone to spontaneous double-strand breaks (DSB), which can occur randomly in cells 10-50 times per day per cell during standard DNA replication or in response to external stressors such as radiation.10,11 Because these double-strand breaks are so common, the body has natural repair processes to address them.10,11 During this process, small insertions or deletions in DNA may naturally occur, which can disrupt a gene’s instructions for making a particular protein.1,12

CRISPR leverages this process by creating a single precise double-strand break at a specific location in the gene of interest, directed by guide RNA, to activate the body’s natural repair process.1,2,11,12 The use of a guide RNA maximizes precision. As a result, the gene may be permanently inactivated and the disease addressed at the genetic level.1,2

An illustration of the natural repair process

CRISPR, clustered regularly interspaced short palindromic repeats; DNA, deoxyribonucleic acid.

CRISPR technology is being investigated to treat both genetically inherited diseases and acquired diseases that arise from an aberrantly behaving wild-type protein.1,2

Intellia’s Proprietary Lipid Nanoparticle Delivery System

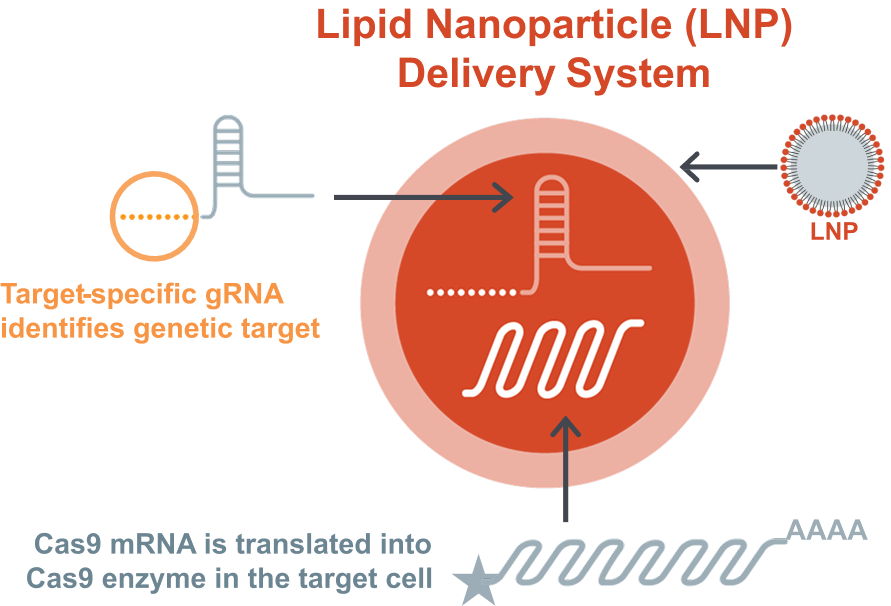

An illustration of Intellia's Lipid Nanoparticle (LNP) delivery system

Intellia has a proprietary delivery method designed to enable direct delivery of the LNP and its components to the liver.1 The liver is a clinically relevant target for a range of diseases because it produces many proteins of interest.1

Intellia is studying the use of CRISPR to treat diseases where the liver is the primary production site of the protein of interest, and has developed an investigational approach designed to be a one-time treatment.1,2,14

The precision editing components (ie, guide RNA and Cas9 messenger RNA) are packaged into a proprietary lipid nanoparticle (LNP) delivery system.1,2 Based on a preclinical study, lower immunogenicity has been observed with the nonviral LNP delivery system compared with a viral vector.4

The proprietary lipid nanoparticle delivery system was designed to help maximize CRISPR gene editing efficacy and minimize systemic toxicity through high liver affinity and reduced risk of uptake by other organs.1 Furthermore, the LNP has been shown in preclinical studies to be cleared from circulation and the liver within 5 days, with a goal to reduce the risk of systemic toxicity or immunogenicity.6,*

*These data are from an animal model; the relevance to humans has not been established.

Cas9, CRISPR-associated protein 9; gRNA, guide RNA; mRNA, messenger RNA.

Proposed Mechanism of Action of In Vivo CRISPR-Based Therapies1-3

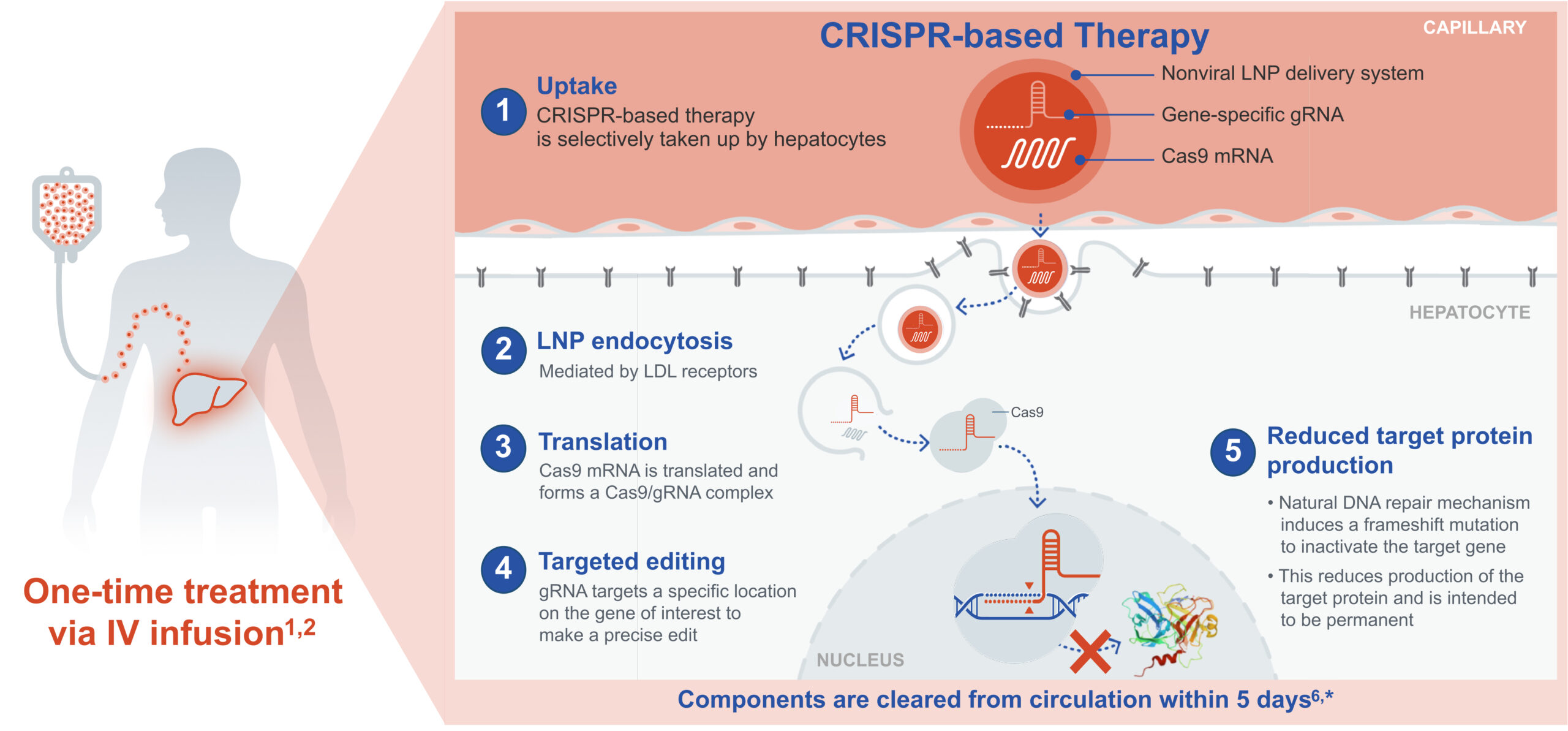

An illustration of the proposed mechanism of action of in vivo CRISPR-based therapies

*These preclinical studies were conducted in nonhuman primates and supported the initiation of Intellia’s clinical trials to evaluate the safety and efficacy of its investigational products. The relevance to humans has not been established.

Cas9, CRISPR-associated protein 9; CRISPR, clustered regularly interspaced short palindromic repeats; DNA, deoxyribonucleic acid; gRNA, guide RNA; IV, intravenous; LDL, low-density lipoprotein; LNP, lipid nanoparticle; mRNA, messenger RNA.

In this illustration of the proposed mechanism of action, the LNP is taken up by hepatocytes after a one-time infusion. The CRISPR complex forms in the nucleus of hepatocytes, where it makes a precise edit in the gene of interest.1,2,7 If successful, this edit halts production of the protein linked to the disease.1,2

The edit is expected to be permanent after Intellia's investigational CRISPR-based therapy is cleared from the system.2,6 The guide RNA, which is required for the CRISPR complex to make an edit, shows decreasing plasma levels over time, suggesting that the guide RNA does not persist long term.7,15

Intellia’s In Vivo Approach to Gene Editing

Understanding CRISPR/Cas9 Gene Editing and Intellia Therapeutics' Approach video
View Transcript
Intellia's Approach to CRISPR/Cas9 video
View Transcript

Responsible Innovation: High Precision, High Accuracy

Intellia is committed to improving patient outcomes by developing the most precise CRISPR-based therapies possible through responsible innovation. One way we do this is by thoroughly testing our guide RNAs.16-18 Guide RNAs are the “molecular GPS” that helps the CRISPR complex target the intended location in a gene.7

Our goal in identifying therapeutic guide RNAs is to achieve both high precision (ie, potent edits at the intended target site) and high accuracy (ie, avoidance of unintended edits).19 To achieve this, we have developed a comprehensive precision workflow that tests our guide RNAs for specificity prior to the development of our CRISPR-based therapies.1,18,19
1
Identify all potential off-target editing loci4,20
2
Analyze editing frequency of off-target regions4,20
3
Confirm no off-target editing potential at clinically relevant dose2,20
4
Proceed with further development of CRISPR-based therapy

Learn more about our approach to responsible innovation in CRISPR/Cas9 by watching the following video:

Intellia's Approach to Responsible Innovation in CRISPR/Cas9 video
View Transcript
